Shuttle Transportation Bus Assembly Line Joint Venture Business Assembly Plant

Chongqing Big Science & Technology Development Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Shuttle Transportation Bus Assembly Line Joint Venture Business Assembly Plant

  • 1
  • 2
  • 3

Dimenssions : 7055*2200*2640

Wheel Base : 3650

Curb Weight : 3800

MOQ : 1

Contact Now

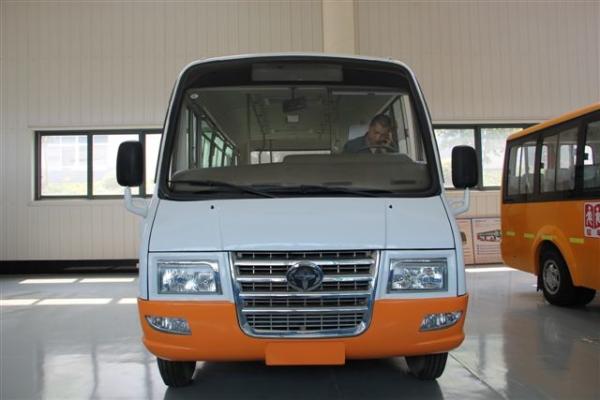

mini bus shuttle bus for assembly joint venture assembly plant

SPECIFICATION
Dimenssion Length(mm) 7055 Engine Data Engine Model YUCHAI / YC4F115-40
Width(mm) 2200 Engine Type Four cylinder in line, water cooled, 4stroke
Height(mm) 2640 / 2750
Wheel Base (mm) 3650 Displacement(L) 2.659
Wheel Tread F/R(mm) 1750/1586 Max. Power(KW/rpm) 85/3200
Overhang F/R(mm) 740/2060 Max. Torque(N.m/rpm) 300/2200
Approach/Departure (°) 10/9 Fuel Type Diesel, Euro III
Performance Chassis Manufacture Dongfeng Max. Speed(km/h) ≥95
Chassis Model EQ6680K4AC Max. Grade Ablitiy(%) ≥20
Engine Position Front Mounted Min. Turning Diameter(m) ≤16
Brake distance(m) (V=30km/h) ≤10 Fuel Tank Capacity(L) 90
Curb Weight(Kg) 3800 Max. Total Weight(kg) 6000
Axle F/R(kg) 2300/4300
Item Standard Configiration Optional
Chassis Clutch single dry plate, disphragm spring
Transmission Dongfeng 5S410, manual transmission
Rear Axle 5T, ratio: 4.875
Front Axle 2.3T
Frame Groove Shape crossbeam
Suspension System Multi Leaf Spring(F 8/R 10), telescope shock absorber
Steering System hydraulic power steering
Chassis Brake System dual circuit pneumatic brake, energy storage spring parking brake
Tire bus tire 7.0-16-12
Electric System 24V, Single Wire, Minus Earth
Starter Standard with the engine
Battery/Generator 6-QA-150AH, 2pcs / Standard Genrator with the engine
Body Body Structure Semi-Integral load body, Steel Frame, Pre-stress Stretched Panel Skin
Interior Trimming Soft Inner Trimming
Door& Door Pump middle and rear pneumatic controlled door
Window front cemented windscreen/rear cemented windscreen, push-pull side window Shuttle Transportation Bus Assembly Line Joint Venture Business Assembly Plant

Floor Driver's area: common covering. Passenger's area: plastic board with covering
Seat 23+1+1, 24 plastic passenger seat, 1 adjustable driver seat
Air conditioner System NO
Heating System NO
Defrost System NO
Handrail & Ring Painted handrail
Audio & Visual Vehicle MP3 player
Rear View System KW20 Common rear view mirror
Lamp Combined headlamp and round Tail Lamp
Wiper A pair of Rain Wiper
Servcie Facility Fire Extinguisher, fan, microphone
Other Domestic Painting
Options Air conditioner (USD) + 2,500.00
CNG POWER (USD) + 1,000.00
Electric Power (USD) Shall be matched and confirmed according to the actual mileage


Shuttle Transportation Bus Assembly Line Joint Venture Business Assembly Plant

Shuttle Transportation Bus Assembly Line Joint Venture Business Assembly Plant

we need your full understanding that to sell the vehicle or equipment to you is not our main purpose , we are mainly seeking partners for assembly plants as a joint venture globally

Explain why we arrange joint venture plant’s share structure:

"65% is held by local shareholders, while 35% is invested by our China auto manufacturer”

1, local shareholders, holding 65% share, have higher business enthusiasm, and this business mode is much better for the development of the plant;

2, local shareholders, holding 65% share, can take more support from their local government, Bank and consumers, and the factory will be recognized as national industry;

3, local shareholders holding 65% share, the domestic industrial enterprises are more likely to obtain the government's preferential policies for industrial development;

4, local shareholders, holding 65% share, can operate various complicated social relations easier and better, which is conducive to the development of the enterprise.

Our preference for joint venture partners:

We prefer to work with capitalists, industrialists and entrepreneurs, rather than cooperating with "landlords", and never accept the "cooperation mode of landlords".The so-called “Cooperation Mode of Landlord”, that is, the landlord owns land, and lives his life by collecting land rent or exploiting peasants. Those, who only provide the land or workshop building, don't work and contribute any working capital, just rely on exploitation of the lessee, are called the landlords. The main way for the landlords to exploit is to collect rent.

As a local partner, if you only provide the land, plant and/or production license, and the rest of funds, equipment, management and others are all provided by the Chinese party, it is just like local landlords to collect profits without any other investment. So, sorry, you are not the partner we are looking for. We like to collaborate with industrialists, capitalists and entrepreneurs, those who have been or are being engaged in industry, with full of experiences, are more suitable for becoming our cooperators. Our cooperation principle is “working together to be bigger and stronger, and to achieve a win-win situation.”

My friend,in order to make our project go well and smoothly, pls read below :

Partner requirements of cooperation or joint venture term:
1.1, Your self workshop: you had have 5000-8000 square meter workshop at least, and over 15000-25000 square meters industrial land.
1.2, Your-self Cash:

have some necessary economic strength, investment capacity must over two million USD.(don't include land, workshop value)
1.3, Market channel: have car sales channel (sales network) or car garage remanufacturing second-hand car, or with the car related businesses.
1.4, Your country Nice Import tariff policy: Your country import tariff policy very important, gap of import tariff between auto spare part CKD (completely
knocked down) term and CBU (complete built unit) shall be at least 30-35%; for example, import tariff on CBU term is 35%, CKD term must be 5%
or free.This term is most important factor for setting up an assembly plant in local. if CBU with CKD is almost same,the auto plant will
have not profit space.
our investment :
production line design + technology support + staff training + equipment installing&maintenance +management guidance + welding line + general assembly line

If you can meet the above mentioned criteria, let’s continue to talk further. Thank you.
