Rear Wheel Drive Seven Passenger SUV SKD & CKD Both Manual & Automatic Available

Chongqing Big Science & Technology Development Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Rear Wheel Drive Seven Passenger SUV SKD & CKD Both Manual & Automatic Available

Brand Name : LF
Model Number : BGST-X8-01
Place of Origin : CHINA
MOQ : 10 Units
Price : USD9,399.00-USD10,699.00 / Unit
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 100000 Units per Year
Delivery Time : 60 working days
Packaging Details : Nude Packing if CBU, Wooden Case + Pallet + Steel Frame + Carton if SKD or CKD
Engine : LF475Q-h (1.5DVVT) / LFB479Q-h (1.8VVT)
Motor Displacement : 1.485L / 1.794L
Length : 4440mm / 4480mm
Width : 1760mm / 1770mm
Height : 1730mm
Drive type : Front Mounted Rear Wheel Drive
Transmission : Manual / Automatic
Braking System : Front disc, Rear Disc
Project : Car assembly
Item : Auto assembling
Wheelbase : 2720mm
Wheel Track : 1470/1490mm
Mini Groundclearance : 192mm
Top speed : 160km/h
Body type : Frameless body
Color : Orange, White, or Customized
Number of seats : 7 seats
Fuel tank capacity : 50L
Engine Power : 80KW/98KW
Min. turning diameter : 26/24m
Max. climbing capacity : 30%
Contact Now

Rear Wheel Drive Seven Passenger SUV SKD & CKD Both Manual & Automatic Available For Local Assembly Reduce Duty Freight


1. Description of the Rear Wheel Drive Seven Passenger SUV:


Model BS371G Middle SUV
CategorySUV 1.5LSUV 1.8L
Vehicle model codeBS371G15MBS371G15ABS371G18MBS371G18A
Dimension Parameters
Overall dimension of complete vehicle: L x W x H (mm)4440*1760*17304480*1770*1730
Max. speed (km/h)160160
100 km fuel consumption (L)7.67.67.98
Wheelbase (mm)27202720
Front/rear tread (mm)1470/14901470/1490
Front/rear suspension (mm)745/975745/945
Complete vehicle curb mass (kg)140014401440
Max. total mass (kg)19901990
Chassis model, category nameFrameless bodyFrameless body
Number of doors (for passengers and driver)44
Number of seats77
Fuel tank capacity (L)5050
Fuel grade (GB17930-1999)93# premium unleaded gasoline93# premium unleaded gasoline
Min. ground clearance (mm)192192
Min. turning diameter (m)≤10.8≤10.8
Approach angle/departure angle (°)26/2426/24
Max. climbing capacity (%)≥30≥30
Engine & transmission Parameters
Engine modelLF475Q-h (1.5DVVT)LFB479Q-h (1.8VVT)
Displacement (L)1.4851.794
Type4-cylinder, in line, water-cooled, multipoint electronic injection gasoline engine4-cylinder, in line, water-cooled, multipoint electronic injection gasoline engine
Valve structureOverhead camshaftOverhead camshaft
Engine capacity compression ratio10.5:110:1
Rated power/speed [kW/(r/min)]80/580098/6000
Max. torque [N·m/(r/min)]145/3500-4200168/4200-4400
Engine oil supply methodMulti-point EFIMulti-point EFI
Electronic fuel injection systemUAES electronic injection systemUAES electronic injection system
Material of cylinder coverAluminium alloyAluminium alloy
Material of cylinder blockCast ironCast iron
Emission standardState VState V
Transmission typeManual transmissionAutomatic TransmissionManual transmissionAutomatic Transmission
Number of gears5MT4AT5MT5AT
Chassis & brake Parameters
Drive modeFR (Front mounted rear wheel drive)FR (Front mounted rear wheel drive)
Drive type4×24×2
Front overhanging typeMacpherson independent overhangingMacpherson independent overhanging
Rear overhanging typeGuide rod non-independent rear suspensionGuide rod non-independent rear suspension
Chassis structureIntegral body constructionIntegral body construction
Front/rear tire specification205/65R16205/65R16
Spare tire specification205/65R16205/65R16
Front brake typeDisc-typeDisc-type
Rear brake typeDisc-typeDisc-type
Parking brake typeHand brakeHand brake
Configurations
Vehicle Model & TypeBS371G15M (5MT)BS371G15A (4AT)BS371G18M (5MT)BS371G18A (5AT)
Comfortable (SX)Luxury (EX)Intelligent (TX)Superior (VIP)Comfortable (SX)Luxury (EX)Superior (VIP)
Engine1.5DVVT1.5DVVT1.5DVVT1.5DVVT1.8VVT1.8VVT1.8VVT
Transmission5MT5MT4AT4AT5MT5MT5AT
Tire specification (205/65 R16)
Steel Wheel rim (16×6J)1111111
Aluminum alloy wheel rim (16×6J)4444444
Electronic throttle pedal
Front-disc rear-disc brake system
Macpherson independent overhanging
Guide rod non-independent rear suspension
ABS+EBD
Hydraulic power steering system
Electric power steering (EPS)
Driver air bag
Passenger air bag
Two-regulating steering column
Crumple type steering column
Engine immobilizer
Anti-theft alarm
Reversing camera
Reversing radar
Central lock inside vehicle
Remote key22
Intelligent key22222
Electric unlock of back door
Trunk cover with inhaul cable
Misoperation lock prevention
20km/h automatical lock
Middle door child lock
Driver and front passenger seatbelts
Driver and front passenger pretensioning seatbelts
Three-point seatbelts, middle-row seats
Three-point seatbelts, rear-row seats
Driver's seatbelt unfastened warning
Front passenger's seatbelt unfastened warning
Safety handle (5)
Headlamp/door unclosed alarm
Hagolen front combination lamp
LED side turning lamp (integrated on the exterior rear mirror)
Front fog lamp
Daytime running lamp
Rear combination lamp
Rear fog lamp+reflex reflector
High mount stop lamp
Front reading lamp
Trunk lamp
Door lamp
TFT combination instrument
MP5+one-way interconnection (IOS, ANDROID)
Bluetooth system
USB connector
6-horn loudspeaker system
Body-color front bumper
Body-color rear bumper
Front grille with color seperation
Chrome plated outer handle
Body-color power exterior rear mirror (with turning lamp)
Chrome plated weather strip
Front wheel fender
Rear wheel fender
Aluminum alloy baggage holder
Body-color rear spoiler
Front wiper
Rear wiper(with washing)
Boneless wiper
Lower deflector (engine lower fender apron)
Exterior body kit
Engine trim cover (full cover)
Treadplate (left & right)
Driver sunvisor (with bill fold)
Front passenger sunvisor (with vanity mirror)
A-column decorative board
B-column decorative board
Injection molding trim panel
Door storage box
UV piano lacquer center console panel
Chrome plated interior door handle
Multi-function steering wheel
Hard headlining
Footrest
Electric dual-evaporator air conditioner
Vehicle-mounted 12V power interface
Cigarette lighter
Movable ashtray
Tool kit (warning sign, towing hook, jack, tool)
Driver 6-way seat with manual adjustment
Front passnger 4-way seat with manual adjustment
Driver and front passenger seats with heating function
Middle-row seat backrest with angle adjustment and flat laying
ISOFIX
Rear bench seat (for 2 people, detachable, foldable and turnable)
Leather seat
Carriage bag, front seat
Front door electric window regulator
Middle door electric window regulator
Rear tempered-glass windshield with defogging function
Common glass
Privacy glass
Anti-dazzling interior rearview mirror
Color-separation interior trim
3M black foil
3M sound absorption cotton
One-button anti-pinch power sunroof
Button start+keyless entry
Automobile data recorder
Tire Pressure Monitor System (TPMS)
ESP
Middle seats with sliding function


Six main advantages of assembling the Rear Wheel Drive Seven Passenger SUV in local:

--- Save Customs Duty and other tax;

--- Save Shipping Cost;

--- Increase profit margin;

--- Improve competitiveness;

--- Develop your local industry;

--- Creat job opportunities for local citizen.


2. Our service and our capability:


In this project, our Chinese company will provide technology support to your company, by sending engineers and technicians to your local place to training your staff, and passing on our China's knowledge your staff (including but not limited to the vehicle manufacturing skills, management system of the vehicle assembly factory, etc. ...); in the same time, supply the complete vehicle SKD/CKD parts for being re-assembled in your local place as well as the assembly equipments; and factory design, equipment layout design in the factory, ... ...



3. Our Cooperation Mode:


A. Trade Agency


At first stage, we can do exporting & importing trade business, gradually build the mutual trust and favorable business relationship, and then develop to project cooperation. If our partner hasn’t gathered enough capital to do the project, this cooperation way is recommended to accumulate funds and experience for the project start later.



B. Turnkey Project/ Technology Transfer Mode


In this project, our oversea partners take 100% shareholdings, and our Group assists you with technology and all necessary equipment of the factory, all in "turn-key project" mode. You pay for the technology transfer, while we help you to establish the assembly factory and provide you automobile parts in SKD or CKD status for assembling in order to cut your cost and simplify the production process. We provide you with all the necessary technology assistance and auto parts till you can master all required technologies and be capable to assemble vehicles on your own completely.



C. Joint Venture Mode


1st way: we take 15% of the shareholding and being responsible for offering the Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.


2nd way: we take 35% of the shareholding and being responsible for offering the Key Equipments, Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.


3rd way: we take more than 35% of the shareholding and being responsible for offering the Capital, some Credit based on reliable guarantee, Key Equipments, Business Plan Assistance Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.


4. Requirements on our Cooperation Partners:


If you start with trade business, a necessary amount of funds for vehicle cycle purchase, a decent showroom for auto exhibition and a kind of repair shop, enough. However, if you want to start the auto assembly plant project, you have to reach the following subjective and objective requirements:


• Workshop / Factory: 5000-8000 square meters to start, and a piece of an industrial land around 20000-25000 square meters for expansion in future.


• Fund: You need to have necessary economic strength & investment capacity, specifically, two million USD at least, excluding land and workshop.


• Market channel: You’d better have your own car sales channel & network, automobile related business.


• Auto import tariff policy: The import tariff policy in your country is very important, the difference of import tariff between CKD (completely knocked down) and CBU (complete built unit) shall be at least 30-35%; for example, if the import tariff on CBU is 35%, so it must be 5% or free on CKD. It is the key factor to set up an assembly plant in local overseas, however, if the import tariff on CKD is almost the same with that on CBU, the auto plant will have not any profit space and it makes no sense to start it.


• Good relationship with government: it can give you good and preferential policies or incentives on this automobile assembly project, and even it can bring you big orders for the assembly plant.


5. Process of our Auto KD Assembly Project:



6. Finally, this Auto KD Assembly Project is Profitable:





If you are interested, contact us now, we will never make you disappointed ! Seize this opportnity, you win, we win, win-win !!


Looking forward to your cooperation!!


Our Contact:

Lucky Peng (Ms.)

China Big S & T Dev (Group) Co., Limited

Chongqing Big Technology Co., Ltd

Website: www.auto-assemblyplants.com;

Email: project11@chainautoassembly.com; project1@chainautoassembly.com; yingqingpeng@china-big.com.cn;

Skype: chongqingbig

Tel No. (WeChat / Whatsapp / Viber): 15223551381



China Customized Inflatable Bumper Ball Game Bubble Adult Grass CE supplier

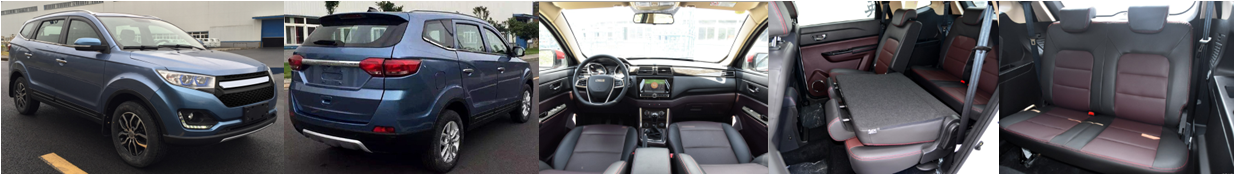

Rear Wheel Drive Seven Passenger SUV SKD & CKD Both Manual & Automatic Available Images
